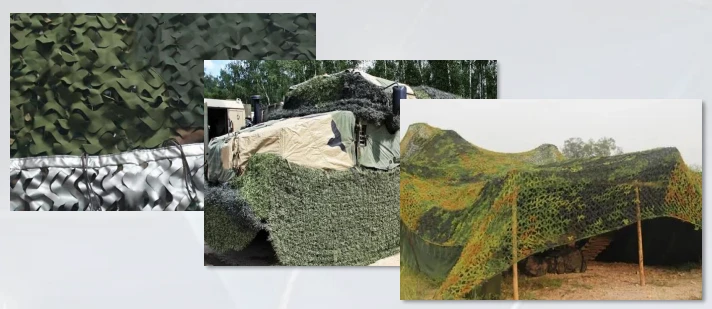

Anti-radar reconnaissance camouflage net is matched with the background in the visible light, near-infrared wavelength spectral reflection characteristics and radar wavelength scattering characteristics. It has the ability of anti-optical reconnaissance and anti-radar reconnaissance, and it can be widely used in the anti-optical and radar reconnaissance camouflage of various equipments. In addition, it can also be used in the camouflage of engineering and facilities.
|
|
Adopt high-strength polyester reinforcing yarn as the skeleton, lightweight and high strength Adopt anti-hooking, easy to operate Good environmental adaptability Adopt composite scattering material with good radar stealth effect Excellent durability |
Structure: reinforced skeleton mesh + cut flower decorative piece Camouflage Type: mainly including woodland type camouflage, desert type camouflage, snow type camouflage, also can be customized. Application Scenarios: It is mainly used for radar band target feature signal control of main battle tanks, armored vehicles, self-propelled artillery equipment and other ground weaponry to counter the detection of millimeter-wave radar and the strike of centimeter-wave detection radar. |
|
Technical Parameters ◆ Weight ≤500g/m² ◆ Physical & Mechanical Properties Rupture strength: Warp ≥ 500N, Weft ≥ 500N Tear strength: Warp≥ 50N, Weft≥ 50N ◆ Flame retardant properties Re-ignition time no more than 10s ◆ Camouflage performance 1) Protection band: 1-18 GHz; 2) Radar wave transmittance: the average radar wave transmittance in the normal direction is not more than 50%; |
3) Bi-directional transmission attenuation Bi-directional transmission attenuation is not less than 4dB in the 1-4GHz band; not less than 4dB in the 4-12GHz band; and not less than 10dB in the 12-18GHz band; ◆ Environmental adaptation The color difference before and after 500h artificial climate aging is less than 3 levels; ◆ Life span 1) A storage lifespan is not less than 10 years; 2) A cumulative field lifespan is not less than 5 years. |
