Products Description

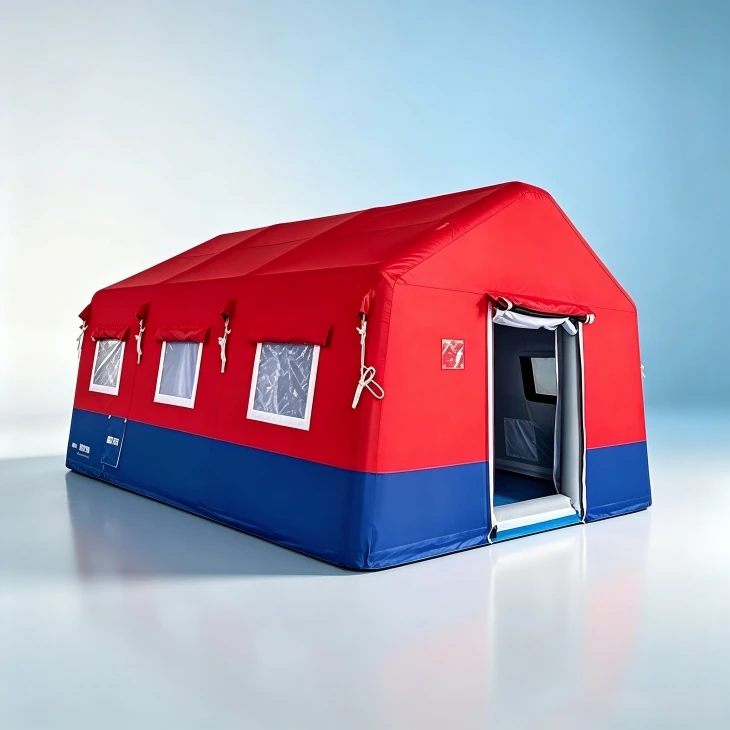

During fire incidents, command personnel often need a protected workspace close to the operation area.The Fire Shelter – Inflatable Incident Command Tent creates an enclosed environment for planning, communication, equipment management, and temporary office work.
The shelter uses a low-pressure inflatable frame with PVC-coated Oxford fabric. After inflation, the interior remains completely open, making it easy to arrange command tables, communication equipment, power distribution boxes, storage racks, or temporary workstations according to the task.
The standard model is supplied in a red-and-blue color scheme commonly used by fire rescue departments in China. Fabric colors, shelter dimensions, entrances, windows, internal partitions, lighting interfaces, cable ports, and logo printing can all be produced according to project requirements.
Technical Data
General
| Item | Specification |
|---|---|
| Structure | Low-pressure inflatable air beam |
| Wind Resistance | Min. 62-74KM/H |
| Operating Temperature | -20°C to +60°C |
| Snow Load | 25 cm |
| Surface Water Resistance | 245 mm |
Outer Tent Fabric
| Item | Specification |
|---|---|
| Material | 600D PVC-coated Oxford fabric |
| Thickness | 0.55 mm ±0.05 mm |
| Tensile Strength | Warp 1700 N/5 cm · Weft 1200 N/5 cm |
| Tear Strength | Warp 270 N/5 cm · Weft 213 N/5 cm |
| Hydrostatic Head | ＞3000 mm |
| Flame Retardant | B2 |
Inflatable Airbeam Structure Material
| Item | Specification |
|---|---|
| Material | Airtight PVC Fabric |
| Thickness | 0.75 mm |
| Tensile Strength | Warp 3517 N/5 cm · Weft 3508 N/5 cm |
| Tear Strength | Warp 510 N/5 cm · Weft 521 N/5 cm |
| Peel Strength | Warp 124 N/5 cm · Weft 129 N/5 cm |
| Water Seepage Resistance | Max. 37 kPa |
| Cold Resistance | -50°C (Maximum crack width ≤1 mm) |
| Flame Retardant | B2 |
Ground Sheet
| Item | Specification |
|---|---|
| Material | High-strength PVC,550G/M2 |
| Thickness | 0.45 mm |
Inner Lining
| Specification | |
|---|---|
| Material | 210D Polyester Fabric, Color:White |
Details of The Fire Shelter
Waterproof Outer Fabric
600D PVC-coated Oxford fabric with a hydrostatic head above 3,000 mm. The outer fabric is suitable for temporary outdoor deployment and daily field operations.
PVC Window Pannels with Mesh Screen
Each window is fitted with a transparent PVC curtain and an inner mesh screen. The PVC layer reduces rain ingress, while the mesh allows natural ventilation when the curtain is rolled up.
White Inner Lining
The white inner lining creates a brighter interior and helps reduce condensation inside the shelter during operation.
SBS Zipper on Inner Lining
Heavy-duty SBS zippers connect the removable inner lining to the shelter body for installation, removal, and maintenance.
Removable Door Column
The inflatable door column can be detached when oversized equipment needs to enter or leave the shelter. After removal, the entrance width increases without affecting the remaining air beam structure.
Air Valve System
The Fire Shelter – Inflatable Incident Command Tent is fitted with full sets of inflation valves including Multifunctiona inlet/outlet, Quickinlet/outlet Valve and safty valves.
Typical Applications

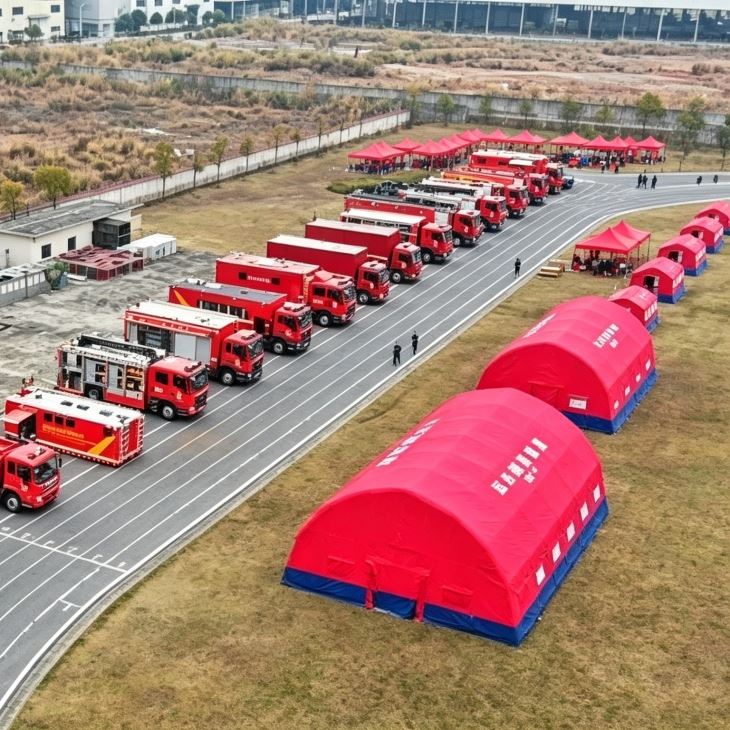

The Fire Shelter – Inflatable Incident Command Tent can be deployed wherever a temporary enclosed workspace is needed. Interior layouts can be arranged according to different requirements.
Incident Command
Emergency Communications
Equipment Staging
Rescue Coordination
Fire Investigation
Multi-Agency Coordination Center
Public Safety Operations
Disaster Response
Production & Packaging
We are always at your service when you need
Production begins with fabric cutting and preparation of all required components based on product drawings and specifications. The materials are then processed through welding, sewing, reinforcement, and assembly procedures to complete the shelter structure. During production, key dimensions, connection points, and component details are checked to maintain consistency with the design requirements.
After assembly, finished shelters undergo final inspection before being folded and packed. Packaging is prepared according to transportation requirements, allowing the products to be shipped for domestic delivery or international export.
