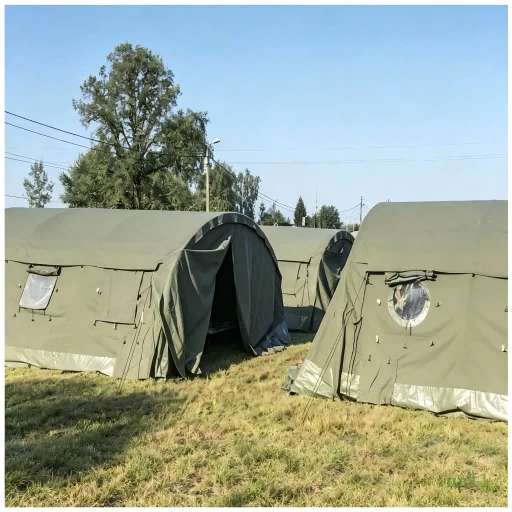

Fast Setup Shelter for Military, Emergency and Field Operations

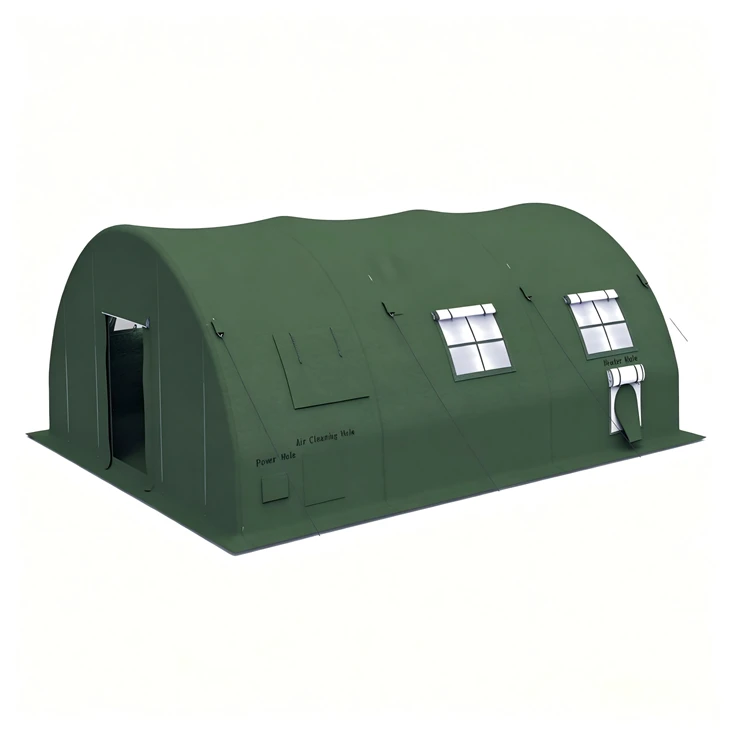

The High Pressure Inflatable Tent -36m² Multiple Uses is designed for fast deployment in demanding environments. It uses a high-pressure inflatable frame that provides excellent strength without heavy metal poles. Four people can set up the tent in less than 15 minutes and pack it away in under 10 minutes.
It has a floor area of 36m² , basically 6m x 6m x 3m, so there s enough room for field shelter, command posts, medical help, storage, maintenance work, and short-term offices. For that reason it becomes a sensible option for armed forces, emergency crews, disaster relief groups, and state bodies.
It can be combined with camouflage net, electromagnetic shielding fabric and heat preservation inner tent according to the requirements so as to realize the superposition of infrared camouflage, radar stealth and internal heat preservation, etc.
With durable, flexible fabric and a reinforced air frame in it, the High Pressure Inflatable Tent delivers steady results even when the weather turns rough. It stays reliable in harsh conditions, but still stays fairly easy to carry along and set up quickly, so overall it is more convenient than youd expect.
Technical Specifications
| Item | Specification |
| Floor Area
|
36m² |
| Tent Size | 6m × 6m × 3m |
| Packed Weight | 180kg |
| Packed Volume | 1.2 m³ |
| Structure | High-pressure inflatable air beam |
| Setup Time | ≤15 minutes (4 people) |
| Packing Time | ≤10 minutes (4 people) |
| Working Temperature | -43°C to +50°C |
| Storage Temperature | -55°C to +70°C |
Multiple Applications
The High Pressure Inflatable Tent -36m² Multiple Uses can be used in many different situations. Its modular design also allows users to add camouflage nets, infrared shielding materials, insulation liners, ventilation systems and other accessories according to mission requirements.
1
2
3
4
5
6
7
8
Reliable Performance in Extreme Conditions
The High Pressure Inflatable Tent is built to perform in difficult outdoor environments.
Air beam puncture resistance: ≥1000 N
Maximum working pressure: ≥0.6 MPa
Wind resistance : up to 28.4 m/s (Level 10 wind)
Snow load : up to 100 mm loose snow
Resistance to damp heat: ≤ Level 2.
Service life :10-1 5 years
Waterproof: in rainfall over 2 mm/min.No leakage after 3 hours of continuous rain and no seepage after 5 hours
Salt spray resistance : No discoloration, chalking, or cracking after 150 hours of exposure; capable of withstanding the effects of salt-spray corrosion in coastal environments.
Continuous operation：One inflation can keep normal operation for up to 180 days
The tent can also be fitted with an insulated inner liner, sort of like an extra skin. The trapped air layer between the outer cover and that inner liner makes a difference with heat loss during cold weather ,and it also helps block heat when the climate is hot. When you pair it with portable heaters or air conditioners, it basically creates a more pleasant indoor atmosphere all year long.
Key Features
Rapid deployment without metal frame assembly
High-pressure inflatable air beam structure
Spacious 36m² working area
Lightweight and compact for transportation
Strong wind and rain resistance
Long-term pressure retention
Suitable for all-season outdoor use
Optional camouflage cover and thermal insulation liner
Compatible with heating, air conditioning, lighting and power systems
Easy Maintenance
The inflatable frame is designed for simple maintenance. Basic repairs can normally be completed within 30 minutes using standard repair tools. Reserved connection ports are available for electrical systems, lighting, HVAC equipment and other field support systems.
Why Choose JINSAIL High Pressure Inflatable Tent -36m² Multiple Uses ?
01
Jinsail High Pressure Inflatable Tent combines fast deployment, high structural strength and reliable weather protection in one portable shelter. Holds multiple national patents. Download patent information
02
Compared to the more traditional frame tent setups, it takes fewer bits and pieces , requires less labor and the installation time is much more shorter. For that reason it is an ideal option for military operations, emergency response, humanitarian aid and also temporary field facilities.
03
Whether you need a field camp, command shelter, medical station or equipment storage tent, this 36m² inflatable shelter provides dependable performance when every minute matters.
