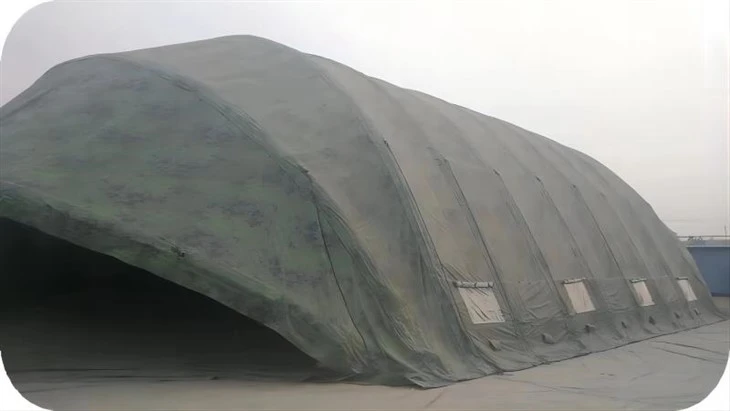

High Pressure Ribs Equipment Warehouse Tent





Quick-Deployed High Pressure Ribs Equipment Warehouse Tent is a ready-to-use storage option. It's perfect for military, emergency response, and industrial operations.

The tent uses high-pressure inflatable rib technology. This gives it strong structure, quick setup, and lasting durability in tough conditions.

The tent sets up in minutes. It offers a spacious, clear interior.

This space is great for storing.

Vehicles

Machinery

Ammunition

Humanitarian supplies

Disaster-relief gear

Field operation materials

Its high-frequency heat-sealed canopy and anti-corrosion materials ensure reliable performance. The strong design holds up well in tough weather, like high winds, heavy snow, and high altitudes.

This warehouse tent gives users a quick, safe, and efficient way to store items in the field. It reduces the need for many workers and boosts operational flexibility.





Name	Technical parameters
Composition	Cover, ground sheet, air ribs, accessories
Structure	High-pressure air ribs form a closed, arched structure. Each air rib functions on its own. They include personnel doors, ventilation windows, and a mosquito net.
Air ribspressure	0.2MPa～0.25MPa Max≥0.75MPa
Support time after inflating	≥180 days
Basic unfolding time	From the packaging status to the fixed time of the tent <20min (5 people)
Remove time	From the beginning to the end of the packing <10min (5 people)
Setting conditions	Maximum allowed venue slope 5%
Service life	1. In the right conditions, the service life is 3 years. The storage life lasts 10 years. 2. There is no failure of the tent, and the number of withdrawals is ≥100 times.
Applicable environment	1. Work temperature: -40 ~+50 ℃ 2. Storage temperature: -43 ~+70 ℃ 3. Resistant load capacity: 200mm loose snow can be afforded 4. Wind resistance: wind speed ≥20.7m/s (level 8 wind) 5. Rain resistance: rainfall ≥16mm/h (heavy rain)
Cover material	Time -resistant , flame -retardant ,digital camouflage coating Oxford cloth
Air ribs material	Puncture-resistant, flame-retardant, and explosion-proof air column materials

1. Rapid Deployment

High-pressure inflatable ribs enable full setup in 16–20 minutes.

No heavy lifting equipment required; only a small team needed.

2. Strong Structural Performance

Withstands Level 10 winds (24.5–28.4 m/s).

Snow load resistance up to 30 kg/㎡.

Suitable for harsh field environments and long-term use.

3. High-Durability Materials

Outer canopy produced using high-frequency heat sealing, ensuring waterproof, airtight, and anti-leak performance.

Designed for a life span of over 10 years.

4. Large Usable Interior Space

Clear-span interior with no central poles.

Ideal for storing vehicles, equipment, supplies, and logistics materials.

5. Wide Environmental Adaptability

Operational temperature range: –45°C to +70°C.

Can be used at altitudes of 4000–5000 meters.

Resistant to mildew, corrosion, and UV exposure.

6. Low Maintenance

Air replenishment cycle of ≥180 days reduces servicing time and effort.

Durable materials withstand long-term outdoor deployment.

7. Versatile Applications

Military equipment storage

Emergency logistics & disaster relief

Mobile field warehouse

Industrial and construction project storage

Humanitarian aid supply depot





PVC bag or metal box packaging.Support sea transportation, land transportation and air transportation.
