Large-Span Military Inflatable Tent

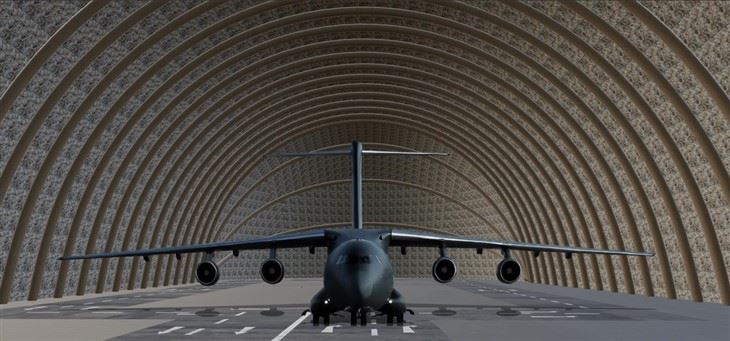

The high-pressure inflatable tent adopts a reinforced airbeam support system combined with a flexible outer fabric, creating a large clear-span shelter suitable for aircraft, armored vehicles, and oversized equipment. It effectively protects critical assets from adverse weather and environmental exposure and can also function as a mobile warehouse for large-scale logistics operations.

Depending on mission requirements, the tent can be integrated with camouflage nets, electromagnetic shielding fabrics, and thermal insulation liners to achieve enhanced infrared camouflage, radar signature reduction, and interior temperature control. These modular upgrades allow the tent to blend seamlessly into its deployment environment while providing secure, stable, and climate-appropriate storage conditions for essential equipment and supplies.

1. High-Pressure Airbeam Structure for exceptional stability and large clear-span interior.

2. Rapid Deployment  with no need for heavy machinery

3. Weather-Resistant Fabric System protecting assets from rain, wind, UV, and snow

4. Optional Camouflage, Insulation, and EMC Shielding for mission-specific integration

5. Suitable for Aircraft, Military Vehicles, and Large Equipment Storage

6. Modular and Mobile, ideal for field operations and emergency logistics

Size: Length 130m* Width 72m* Height 31m

1. Airbeam Material - Physical & Mechanical Performance

Anti-Puncture Strength: ≥1000 N

Maximum Pressure: ≥0.6 MPa

2. Environmental Adaptability

2.1 Temperature Resistance

Operating Temperature: –43°C to +50°C

Storage Temperature: –55°C to +70°C

2.2 Waterproof Performance

Rainfall intensity ≥ 2 mm/min

Leak-free for 3 hours, no dripping for 5 hours

2.3 Salt Spray Resistance

150 hours with no discoloration, no chalking, and no cracking

Suitable for corrosive coastal environments

2.4 Damp-Heat Resistance

Rating: ≤ Level 2

2.5 Load Resistance

Able to withstand 100 mm of loose snow

2.6 Wind Resistance

Resistant to wind speeds ≥ 28.4 m/s (Beaufort Scale Level 10)

2.7 Thermal Insulation

Achieved through:

Outer fabric

Inner insulation liner

Air gap between layers

Optional heater or air-conditioning integration

3. Deployment & Teardown Time

Setup Time: ≤ 24 hours (with 40 personnel)

Teardown Time: ≤ 24 hours (with 40 personnel)

4. Reliability

Single inflation maintains working pressure for ≥ 90 days

Service life ≥ 5 years

5. Maintainability

Basic-level maintenance: ≤ 0.5 hours

6. Support & Interface Options

Equipped with professional maintenance tools

Customizable with pre-reserved system interfaces based on project demands

1. Aircraft & helicopter hangars

2. Armored vehicle and tank storage

3. Construction machinery shelter

4. Disaster relief logistics warehouse

5. Mobile maintenance & field workshops

6. Military camp infrastructure

7. Industrial storage and temporary factory buildings

Rapid Deployment for Mission-Critical Operations

Ideal for military, aviation, and emergency forces requiring fast setup anywhere.

Lower Cost Than Steel Hangars

Minimal foundation, zero heavy steel structure, reduced shipping and installation cost.

Highly Mobile & Reusable

Designed for repeated deployment and long-term durability.

Customizable for Any Mission

Door size, insulation, HVAC, lighting, security doors, and logos can be tailored to requirements.

Standard Export Package: Heavy-duty PVC tarpaulin + pallet (optional)

Shipping Methods: By sea, air, or land

Accessories Included: repair kit, air pump/blower, rope sets, stakes, transport bags
