Products Description

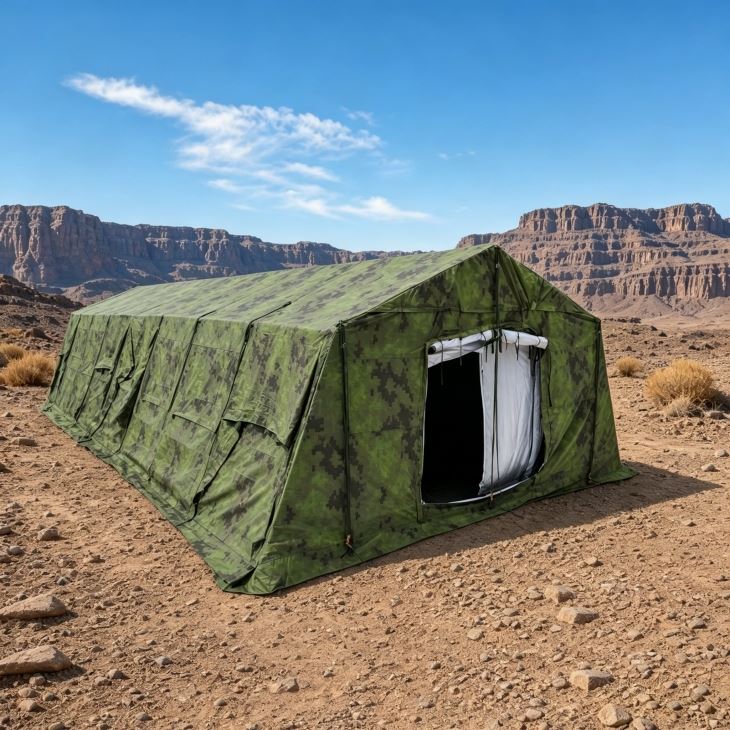

This Collapsible Tent is made from a double-slope roof structure and a dual-layer fabric, supported by a foldable high-strength metal frame. It's designed to stay stable and practical in field conditions.
It provides around 30 m² of usable space, which is enough for 10 people in a group,or it can be arranged as a small mobile office for about 6 people, depending on the tent usage.
When the frame is folded, the whole size goes down to about 0.745 m³, which is quite convenient for transport and storage, and it works well for projects where the shelter needs to be moved and set up in short time.
It used in field operations, temporary base setups, training sites, or similar situations. Basically anywhere you need a shelter that can go up quickly and be taken down without much hassle.
Products Video Show
Key Features of Collapsible Tent
Main features for the Collapsible Tent
Rapid Deployment Military Shelter for Field Operations.
Foldable Metal Frame
The frame can be folded section by section after use, which helps reduce transport space and makes handling on site more convenient.
Double-Slope Roof
The roof shape is designed for outdoor use and helps avoid water accumulation during rain conditions.
Dual-Layer Fabric
The outer and inner fabric layers are separated to improve overall practicality for field environments and long-hour use.
Open Interior Layout
The inside space can be arranged for temporary accommodation, field office work, equipment placement, or other operational needs.
Technical Specifications
| Items | Specification / Description |
|---|---|
| Main Components & Materials |
Foldable Metal Frame: High-strength steel alloy with hinged, collapsible arch frames and horizontal connectors Outer Tent (Flysheet): 500D camouflage waterproof fabric; seams coated and internally sealed Inner Tent: 150D white, silver-coated flame-retardant Oxford fabric Ground sheet: Double-sided PVC-coated waterproof fabric Guy Ropes: Polyester core ropes; 4 × 6000mm ridge ropes, 12 × 4000mm eave ropes Ground Stakes: 16 × angle steel stakes (450mm, 40×40×5mm) Hook Stakes: 12 × round steel hooks (250mm, Ø12mm) Windows: Polyurethane transparent film Mesh Doors/Windows: Polyester mesh fabric Connecting Tunnel: Same materials as outer/inner tent |
| Technical Parameters |
Usable Area: 30 m² Capacity: 10 persons (accommodation) / 6 persons (office use) Dimensions: 6060 × 5660 × 2720 mm (approx.) Packed Volume: 0.745 m³ (foldable frame) Total Weight: 250 kg (approx.) Assembly & Dismantling Time: < 30 min (3-person team) Deployable Ground: Most terrains except hard rock, desert sand, ultra-soft soil (moisture >21%); slope < 3% |
| Environmental Adaptability |
Operating Temperature: -41°C to +46°C Storage Temperature: -55°C to +70°C Humidity Resistance: Continuous operation under 95% RH at 40°C Wind Resistance: Deployable at 9.4 m/s (Beaufort 5), operable at 20.7 m/s (Beaufort 8) Rain Resistance: No leakage under rainfall intensity 1.7 mm/min for 1 hour Snow Load: ≥ 100 mm fresh, uncompacted snow |
Applications
Be used in a wide range of Scenarios.
Temporary Field Accommodation
Medical Stations, Triage, or First-aid Points
Emergency Response and Disaster Relief Operations
Outdoor Temporary Offices or Workspaces
Field Command or Coordination Centers
Humanitarian Aid and Support Missions
Packing and Shipping
a
- Protective Packing
The tent components are packed with export-standard cartons, woven bags, or pallets depending on the order and loading requirements.
- Shipping Arrangement
Sea freight, air shipment, and land transportation can all be arranged based on destination and project schedule.
- Delivery Support
We work with professional logistics partners to help keep shipment and delivery arrangements running smoothly.
|
Package |
Weight (kg) |
Size L*W*H (mm) |
Quantity |
|
|
Outer tent package |
≤65.0 |
1100*550*450 |
1 |
|
|
Inner tent package |
≤75.0 |
1100*550*400 |
1 |
|
|
Rack package |
≤60.0 |
2000*180*180 |
1 |
|
|
Horizontal bar package |
≤25.0 |
2200*320*270 |
1 |
|
|
Total |
≤225.0 |
|
4 |
Why Choose This Military Foldable Frame Tent ?
1. Stable Frame Structure
The tent uses a hinged metal frame with horizontal support connections to keep the overall structure stable during field use and repeated installation.
2. Faster Setup on Site
The foldable frame design helps reduce setup and dismantling time, especially for temporary deployment projects where mobility is important.
3. Built for Outdoor Conditions
The structure combines a waterproof outer flysheet, insulated inner layer, and PVC groundsheet for regular outdoor operation in rain, wind, humidity, and seasonal weather conditions.
4. Usable Interior Space
Around 30 m² of interior space can be arranged for accommodation, temporary office work, equipment storage, medical support, or other field tasks.
5.Expandable Configuration
The tent can be used together with tunnels, lighting systems, HVAC equipment, or additional shelter units depending on project requirements.
6. Reduced Packing Volume
After folding, the frame structure takes up less transport and storage space compared with conventional fixed-frame shelters.
