Products Description
This metal-frame military tent is built for tough field conditions and long-term use. The galvanized steel frame provides strong structural support, while the gable-roof design and straight side walls create a spacious interior. The outer cover is waterproof and fire-resistant, made with durable 500 g/m² fabric. Ventilation windows with mosquito nets and clear cold-resistant film ensure good airflow and comfort. Ideal for troop accommodation, command posts, disaster relief, and base-camp shelters, this tent performs reliably in harsh weather and challenging environments.
Key Features
1. Strong Galvanized Steel Frame – Durable vertical and horizontal beams with reinforced connectors.
2. Heavy-Duty Weather Protection – Waterproof, fire-resistant outer cover for all-season use.
3. Good Ventilation & Comfort – Side windows with mosquito nets and protective film for airflow.
4. Spacious Interior Layout – Clear internal space suitable for beds, equipment, or work areas.
5. Stable in Harsh Environments – High wind resistance with ground stakes and guy ropes.
6. Easy Maintenance – Simple structure, replaceable cover, and accessible frame connections.
7. Versatile Field Applications – Military, emergency response, humanitarian aid, and base-camp operations.
Technical Specifications

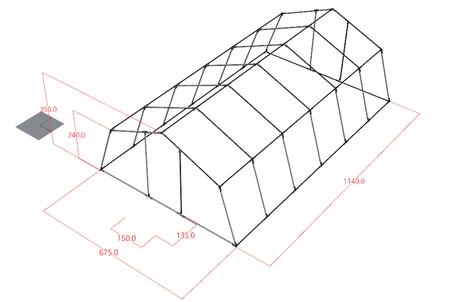

1. Frame Structure
Material: Galvanized steel pipe,φ 42*2.0mm
Horizontal racks & connectors: Reinforced steel components 47*2.0mm
Anti-corrosion treatment for long-term outdoor use
2. Tent Cover
Material: 500 g/m² polyester fabric
Waterproof & fire-resistant
High tensile and tear strength
UV-resistant and color-stable
Detailed Data:
| Material Density | ≥ 500 g/m² |
| Tensile Strength | Warp: ≥ 119 daN • Weft: ≥ 99 daN |
| Elongation at Break | Warp: ≥ 15% • Weft: ≥ 18% |
| Tear Resistance | Warp: ≥ 19 daN • Weft: ≥ 30 daN |
3. Ventilation System
Side windows with mosquito nets
Cold-resistant clear PVC film
Sidewalls can be lifted for increased airflow
4. Ground System
Heavy-duty stakes, guy ropes, and fixing points
Optional PVC groundsheet available
5.Technical Highlights
1) Heavy-duty galvanized steel frame
2) Reinforced waterproof & fire-resistant 500 g/m² outer fabric
3) Integrated gable-roof structure with chimney ports for heaters
4) Ventilation system with mosquito-net windows and frost-resistant film
5) Sidewalls liftable up to 100 cm for improved airflow
6) Dual-layer lining system (winter insulated liner + summer inner liner)
7) Multiple secure fastening systems: buckles, ties, Velcro, rivets
8) Fully equipped with steel cables, stakes, pegs, and vestibule structure
Applications
1. Military accommodation
2. Command and control tents
3. Field hospitals / medical station
4. Disaster relief shelters
5. Logistics and base-camp structures
6. Long-term outdoor operations
Packing and Delivery
1. Secure Packaging: Products are packed in standard export cartons or pallets to prevent damage.
2. Flexible Shipping: Choose sea, air, or land transport to meet your schedule.
3. Timely Delivery: Fast and reliable logistics to your location.
