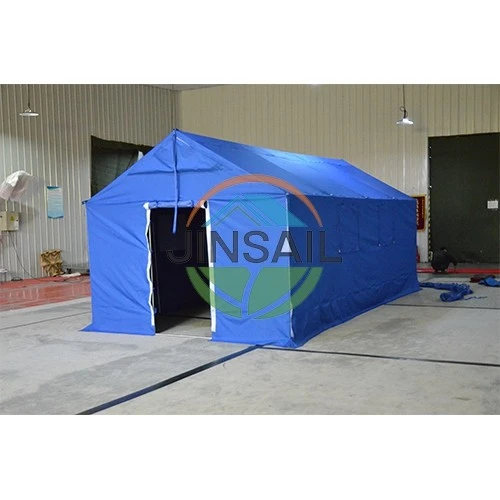

Mess Tent – Military Field Dining Shelter with Screen Windows
The mess tent provides a 72 m² covered dining area for up to 75 people. It is used in military camps and temporary field camps for meal service and dining.
The tent consists of a steel frame, fabric cover and screened windows along the side walls. The screen windows protde special ventilation while keeping the openings protected with mesh.
It is built for repeated setup and packing. It is specified for up to 100 deployment and packing cycles without functional problems or visible damage to the main components and accessories.
Technical Data
| Item | Specification |
|---|---|
| Tent Area | 72 m² |
| Overall Size | 10,000 × 7,200 mm |
| Eave Height | 1,950 mm |
| Ridge Height | 3,630 mm |
| Seating Capacity | Up to 75 persons |
| Structure | Steel frame structure |
| Main Frame | Q235DY Φ40 × 1.2 mm welded steel tube |
| Connection Tubes | Q235DY Φ45 × 1.5 mm welded steel tube |
| Outer Fabric | 600D polyester camouflage Oxford fabric, PU-coated and waterproof |
| Inner Ceiling | 150D polyester PU-coated silver thermal-insulation fabric |
| Windows | Screen windows, 900 × 1,230 mm window opening |
| Door Opening | 900 × 1,800 mm |
| Snow Load | 80 mm |
| Wind Resistance | 8 Beaufort |
| Rain Resistance | No leakage under rainfall intensity of 16 mm/h |
| Deployment Cycles | 100 repeated deployment and packing cycles |
| Continuous Service Life | Not less than 2 years |
| Operating Temperature | -41°C to 46°C |
| Maximum Applicable Altitude | Below 5,000 m |
| Ground Fixing | Guy ropes and ground anchors |
| Transport | Suitable for road, rail and sea |
Advantages
Competitive Advantage
Mess Tent – Military Field Dining Shelter with Screen Windows
Screen Window Configuration

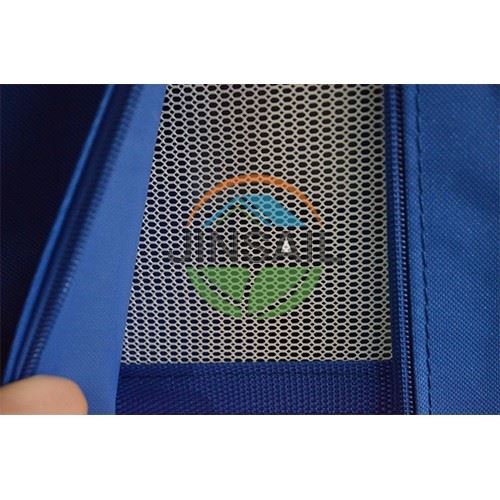

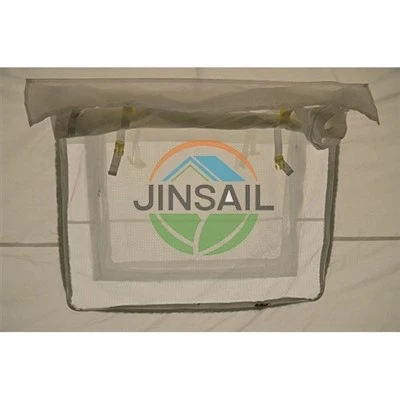

The sidewalls have screened windows measuring 900 × 1,230 mm. The windows are fitted with mesh screens as part of the tent enclosure.
01
75-Person Dining Capacity
With a floor area of 72 m², the tent provides seating space for up to 75 people. The interior can be arranged with tables and seating according to the requirements of the field camp.
02
Steel Frame Structure
The frame uses Q235DY welded steel tubes, including Φ40 × 1.2 mm tent poles and Φ45 × 1.5 mm connection tubes. Steel wire ropes are used for the roof, gable and other structural bracing points.
03
Repeated Deployment
The tent is suitable for repeated erection and packing in field use. After 100 cycles, the main components and accessories should remain functional, without visible deformation or damage.
04
Field Environmental Range
The specification covers operation in temperatures from -41°C to 46°C, relative humidity up to 95%, and locations below 5,000 m altitude. The tent can also be deployed and packed under specified wind and rainfall conditions.
05
Application Scenarios
Scenarios
Mess Tent – Military Field Dining Shelter with Screen Windows
Field Dining Area
This tent provides a dedicated dining area within a military or temporary field camp. With seating for up to 75 people, it can serve as a shared meal area for personnel working at the same field location.
Military & Emergency Catering
The Mess Tent is used as a dining area in military camps, emergency bases and temporary field camps. It provides a separate space for serving meals and dining during field operations.
Screen windows are fitted into the tent walls for ventilation, while the fabric enclosure keeps the dining area separated from the surrounding camp.
Construction and Remote Work Canteens
The tent can also be used as a temporary canteen at construction camps, mining sites, oilfield projects and other remote work locations where a separate dining building is not available.
Temporary Logistics Support Space
As part of a larger camp layout, the Mess Tent can serve as a dining unit,also can be as accommodation, administration, storage and other field facilities.
Customized Options
Professional Supports For Projects
The 72 m² configuration can be customized to suit different project requirements, including:
- Tent size and floor layout
- Fabric specification and color
- Door position and opening size
- Window and screen window configuration
- Internal lining or thermal insulation
- Table and seating arrangement
- Identification markings or branding
- Frame structure and component specifications
Why This Mess Tent?
A Dining Space for Temporary Field Camps
The Mess Tent – Military Field Dining Shelter with Screen Windows is designed for dining in military camps, emergency bases and temporary field camps. Its 72 m² floor area accommodates up to 75 people, providing space for organized meal service.
The tent has 900 × 1,230 mm screen windows built into the side walls. They provide ventilation while keeping the dining area enclosed.
The steel frame and fabric enclosure are suitable for repeated field use. The requirements include 100 erection and packing cycles, together with specified wind, snow, rainfall and temperature conditions.
For larger field camps, the dining tent can be used alongside accommodation, storage, medical and administrative units as part of the overall camp layout.
