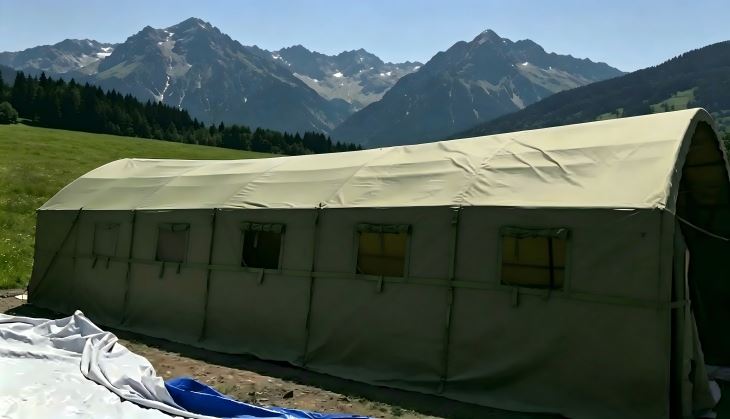

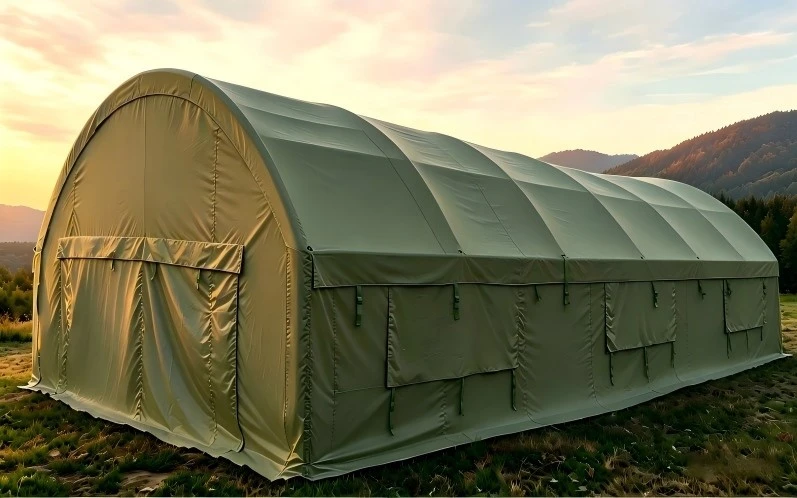

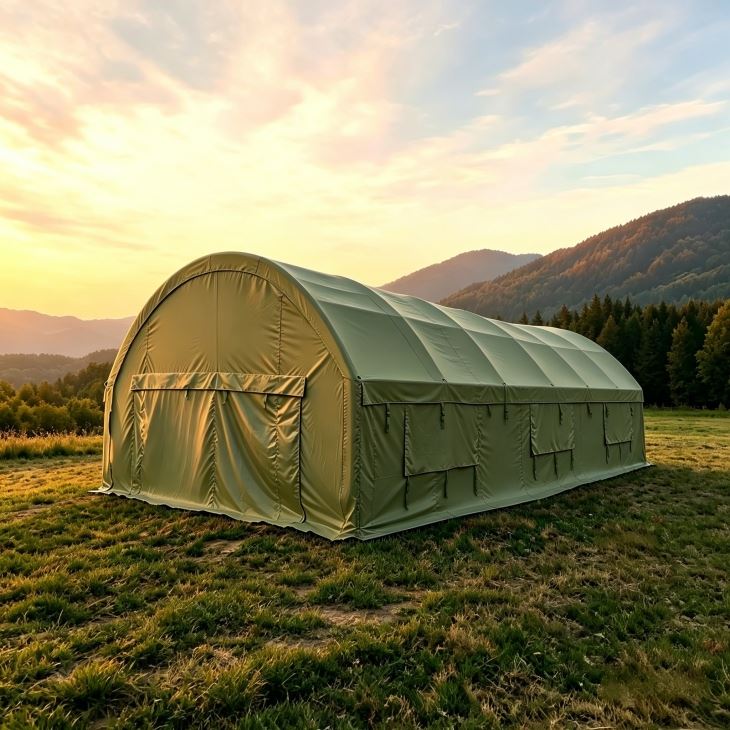

The Storage Tent with arch roof is a modular field shelter system , designed for demanding outdoor and operational environments. With a standard size of 6×12 meters, the structure can be extended in length to meet different capacity requirements.
The arched roof design improves wind resistance and internal space utilization, making it suitable for both stationary and semi-mobile deployment scenarios.
The frame is 42×1.4mm galvanized steel tubes with protective coating, ensuring structural stability under repeated installation and dismantling.
Multiple fabric options are available depending on usage environment, ranging from heavy-duty oxford fabric to industrial-grade PVC tarpaulin.
This shelter system is widely used in field logistics, temporary military bases, emergency accommodation, and remote operational support areas, similar in concept to modular field systems used by leading suppliers such as Alaska Structures.
Technical Data
| Item | Specification |
|---|---|
| Product Name | Storage Tent – Arch Roof Shelter – Alaska Style |
| Standard Size | 6m × 12m |
| Side Height | 2.0 m |
| Ridge Height | 3.45 m |
| Frame Material | 42 × 1.4 mm galvanized steel pipe |
| Surface Treatment | Galvanized + Painting |
| Fabric Options | 420D Oxford Cloth / 430g Canvas / 550g PVC or Customized |
| Ground Sheet | 450g PVC |
| Doors | 2 pcs (customizable size) |
| Windows | Customizable |
| Structure Type | Arch roof Galvanized steel pipe frame system |
Key Features
Our advantage
Storage Tent – Arch Roof Shelter – Alaska Style
Modular structure allows flexible length extension
The structure maintains a fixed 6m width while allowing scalable length adjustment by adding 2m frame sections.
Arch roof structure improves wind load performance
Curved roof design distributes wind pressure evenly, improving overall stability in exposed outdoor environments.
High-strength galvanized steel frame with anti-corrosion coating
42×1.4mm steel pipe treated with galvanization and protective coating for long-term corrosion resistance.
Multiple fabric options for different climates and usage levels
Available in oxford, canvas, and PVC tarpaulin to meet requirements from light use to heavy-duty deployment.
Internal space optimized for equipment storage and personnel use
Wide span structure maximizes usable interior space for storage, accommodation, or operational setups.
Customizable door and window configuration
Door size, position, and window layout can be adjusted according to project planning and functional needs.
Suitable for repeated assembly and relocation
Designed for multiple installation cycles without structural degradation, supporting mobile and semi-permanent use.
long service life in field conditions
Built for extended outdoor deployment under varying weather conditions with minimal maintenance requirements.
Main Applications
Scenarios
Temporary military command center
Temporary barracks for accommodation
Field dining hall / mobile kitchen shelter
Military Suppliers Warehouse
F. A. Q.
Q1: Can the tent be extended in length?
Yes. The structure is modular, and the length can be extended in 2-meter sections according to project requirements.
Q2: Is this suitable for long-term outdoor use?
Yes. With PVC fabric and galvanized steel frame, it is designed for extended field deployment.
Q3: Can doors and windows be customized?
Yes. Both size and placement can be adjusted according to requirements.
Q4: What is the difference between fabric options?
Oxford fabric: lighter use / temporary deployment
Canvas: balanced durability and breathability
PVC: highest durability for harsh environments
Q5: Can it be used in military or government projects?
Yes. It is widely used in field logistics, storage, and temporary operational bases.
