Products Description

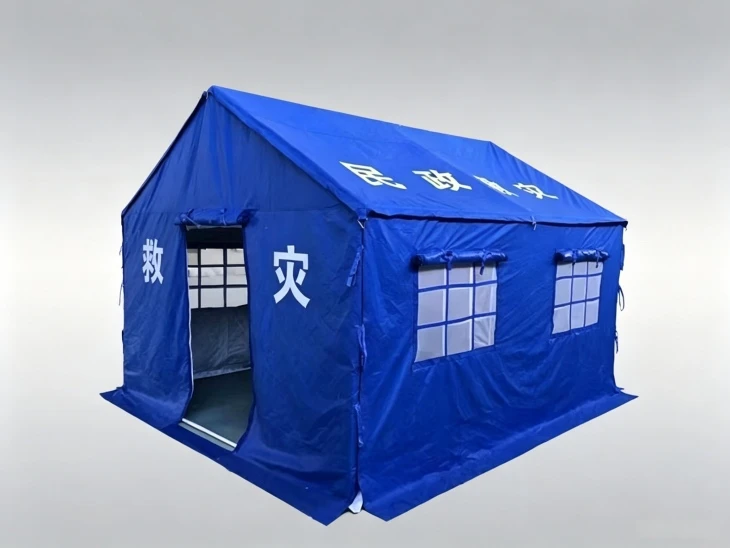

This 12㎡ temporary disaster shelter is designed for rapid deployment in emergency response environments. The structure is based on a modular frame system, covered with PVC-coated fabric in blue color.
The interior is equipped with a cotton insulation lining, configured to reduce external temperature influence and improve internal comfort during field use.
The layout supports basic field functions such as sleeping space, triage point, or temporary storage under relief conditions. The structure is designed for ground installation in disaster-affected areas.
Products Video Show
Key Features
Main Characteristics
Modular frame structure for field assembly

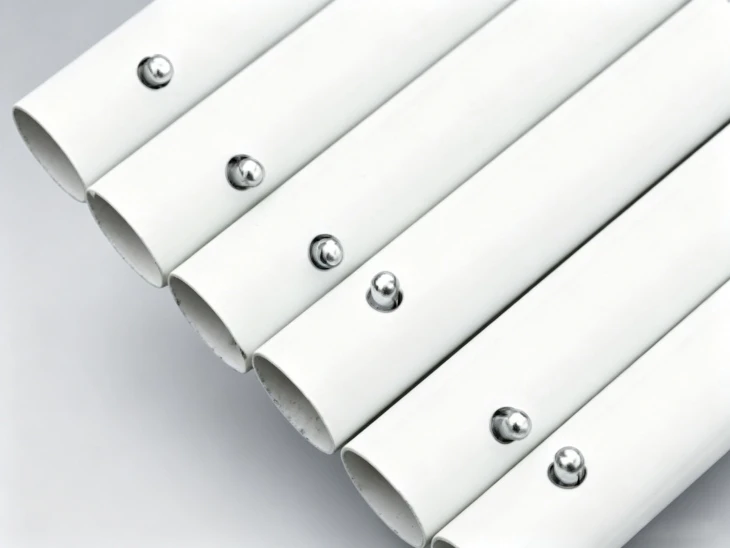

Steel frame system connected by joints, designed for repeated assembly and disassembly in temporary field conditions.
Cotton-lined insulation layer for internal temperature buffering.
Inner cotton layer installed between outer cover and interior space, used to reduce heat loss and external temperature impact.
PVC-coated outer fabric for ground deployment
Outer shell constructed with coated polyester material, configured for direct ground installation in relief areas.
Single-room layout for basic field function use
Open internal layout designed for sleeping arrangement, basic medical triage, or storage under emergency conditions.
Technical Data
| Item | Specification |
|---|---|
| Product Name | Temporary Disaster Shelter |
| Covered Area | 12㎡ |
| Dimensions | 3m × 4m (customizable) |
| Color | Blue |
| Structure Type | Frame-supported shelter system |
| Outer Fabric | PVC-coated polyester fabric |
| Inner Lining | Thermal cotton insulation layer |
| Frame Material | Galvanized steel pipe,Q235 steel tubes (Φ25/28 mm) |
| Floor System | PVC groundsheet (welded) |
| Door System | Zip or roll-up entrance |
| Installation Time | Approx. 30–60 minutes (4–6 persons) |
| Application Environment | Relief zones, field deployment sites |
Applications
Scenarios
Earthquake Relief Temporary Accommodation For Affected Residents
Flood Response Field Shelter For Displaced Populations
Emergency Relief Base Setup For Rescue Teams
Temporary Storage or Resting Unit In Disaster Response Camps
Deployment Notes
Field Deployment & Operational Conditions
Information below describes basic site conditions and handling requirements for installation and temporary use.
Installation condition
The shelter is intended for flat ground deployment. Site leveling is recommended before frame installation.
01
Logistics form
All structural parts and fabric are packed in folded format for container transportation and on-site handling.
02
Tool requirement
Basic manual tools are sufficient for assembly. No lifting equipment is required under standard installation conditions.
03
Usage scope limitation
This structure is intended for temporary field use. It is not designed for permanent construction or long-term occupancy without maintenance cycles.
04
