Products Description

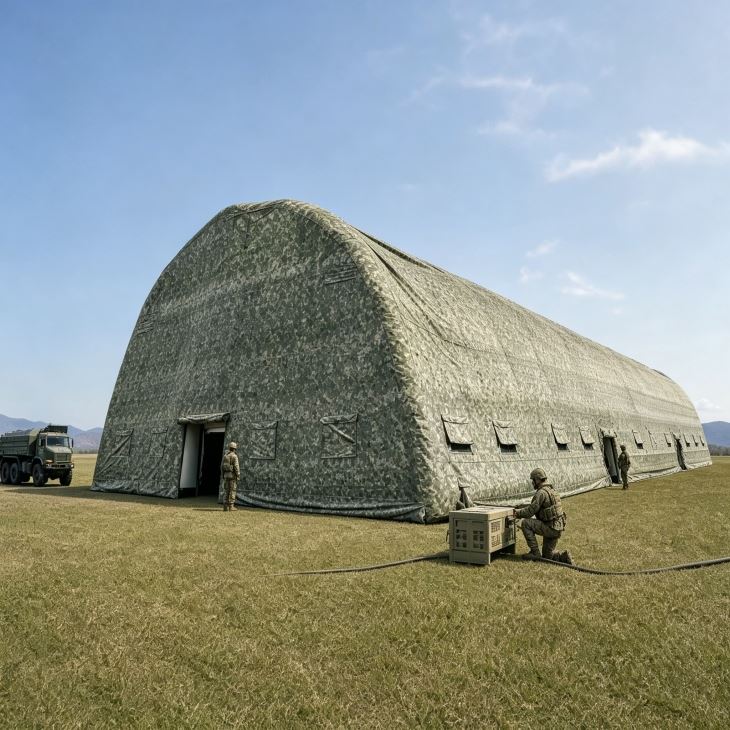

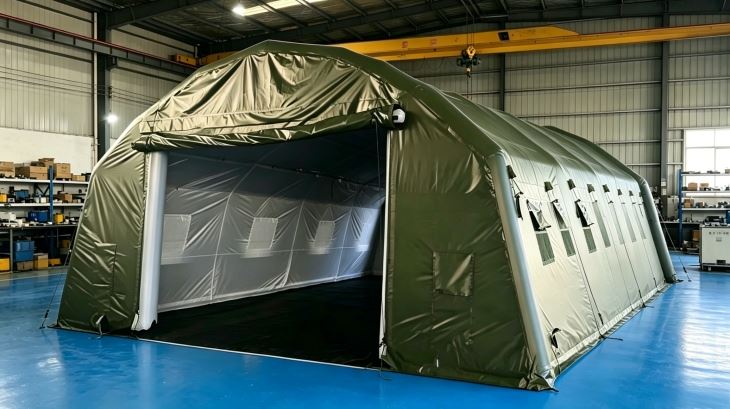

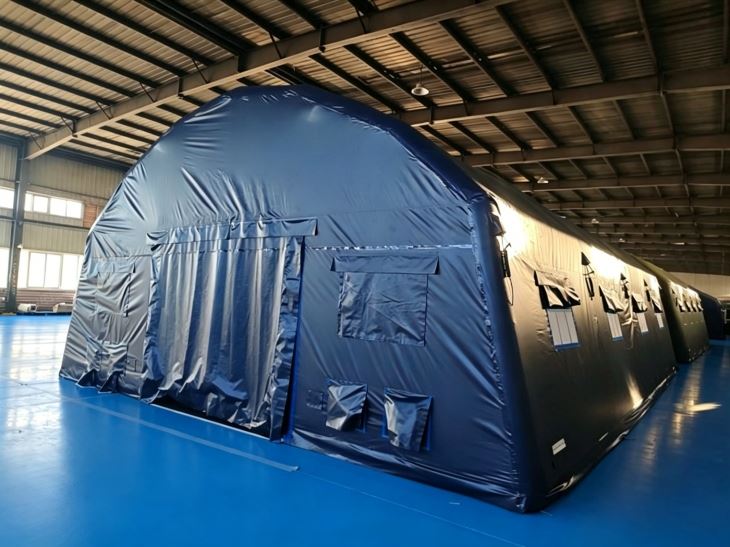

The 17×35M Large Inflatable Tent is a large area shelter,mainly used for military deployment, emergency response,and field operations.
The structure is supported by inflatable air beams,allowing faster installation on site compared with traditional steel frame large tents.
The spacious interior space can be arranged as several function areas,such as command post, equipment storage warehouse, maintenance workshop,or other operational requirements areas.
Once the mission is completed,the shelter can be deflated fastly,packed,and redeployed at another site conveniently.
Products Video Show
Parameters of Large Inflatable Tent
Fabric
| Item | Specification |
|---|---|
| Outer tent fabric | 600D×600D Oxford fabric, high-strength polyester with PVC coating |
| Outer fabric thickness | 0.55 mm ± 0.05 mm |
| Outer fabric color | Customizable |
| Outer tensile strength | Warp 1700 N/5cm, Weft 1200 N/5cm |
| Outer tear strength | Warp 270 N/5cm, Weft 213 N/5cm |
| Waterproof rating | ≥ 3000 mm |
| Flame retardant grade | B2 |
Air Beam (Inflatable Structure)
| Item | Specification |
|---|---|
| Material | PVC composite airtight coated fabric |
| Thickness | 0.75 mm |
| Color | Customizable |
| Tensile strength | Warp 3517 N/5cm, Weft 3508 N/5cm |
| Tear strength | Warp 510 N/5cm, Weft 521 N/5cm |
| Peel strength | Warp 124 N/5cm, Weft 129 N/5cm |
| Air tightness pressure resistance | Max 37 kPa |
| Cold resistance | -50°C ±1°C (no cracking ≤ 1 mm) |
| Flame retardant grade | B2 |
Floor & Interior
| Item | Specification |
|---|---|
| Ground sheet | 0.45 mm high-strength polyester PVC-coated fabric |
| Inner tent fabric | 210D Oxford fabric |
Accessories & Fixing System
| Item | Specification |
|---|---|
| High-pressure electric pump | 1 set |
| Quick connectors | 1 set |
| Ground nails | Threaded steel stakes, Ø8 × 500 mm |
| Wind ropes | Military-grade polyester rope system with adjustable tension |
| Hammer | 1 set |
| Engineer shovels | 2 pcs |
| Repair kit | PVC glue + airtight coated fabric patches, 2 sets |
| Storage bags | 1 pc |
| Instruction manual | 1 pc |
Construction Performance
| Item | Specification |
|---|---|
| Processing method | Air beams high-frequency heat welding; fabric double-needle stitching with waterproof tape sealing |
| Wind resistance | Up to 80 km/h (instant wind) |
| Operating temperature | -20°C to +60°C |
| Snow load | 25 cm |
| Inflation time | 5–8 minutes |
| Deflation time | 10–15 minutes |
| Water resistance (surface pressure) | 245 mm |
Warranty
| Item | Details |
|---|---|
| Warranty | 1 year |
| Storage life | Up to 5 years (dry & proper storage conditions) |
Key Features
Characteristics of the Large Inflatable Tent
17×35M Military Shelter for Rapid Deployment
Structure & Materials
Inflatable air beams are used as the main support system instead of metal frames.
The beams are made from reinforced PVC depending on project requirements.
Outer fabric is PVC-coated polyester or hypalon, selected for field and long-term outdoor use.
Seams are heat-welded or RF-welded to improve sealing performance.
Environmental Performance
The structure is suitable for wind and rain conditions in outdoor deployment.
When properly anchored, it can maintain stability in wind speeds up to 60–75 mph.
Snow load performance depends on site conditions and configuration.
Insulation layers can be added for low-temperature environments.
Deployment & Transport
Typical installation time is 5–15 minutes using an electric or manual pump system.
A 2–4 person team is sufficient for standard setup without lifting equipment.
After deflation, the system can be packed into transport bags for relocation.
Access & Ventilation
Door layout can be configured as single or double entry points.
Ventilation is provided through mesh windows and adjustable vents.
HVAC connection points can be integrated if required for climate control systems.
Scenarios
Main Applications
Large Inflatable Tent-17×35M Military Shelter for Rapid Deployment
Military Field Deployment
Used as temporary accommodation and working space in field deployments,providing a practical enclosed environment for personnel in outdoor conditions.
01
Command & Technical Operation Base
Suitable for command setup,equipment maintenance, and on-site technical work,where a covered and organized space is required.
02
Remote Site Storage & Logistics
Offers protected space for storing equipment,spare parts,and essential materials in remote locations without permanent facilities.
03
Mobile & Reusable Shelter System
Designed for repeated installation and relocation,making it suitable for projects that require flexible and transportable infrastructure.
04
Design & Configuration Notes
Project Considerations
Before finalizing the configuration,several key factors should be evaluated to ensure the items meet project requirements, including site conditions,intended usage,internal layout,and functional integration needs.
The system can be adapted in terms of size,entrances,internal zoning, and optional insulation depending on the operational scenario.
