Products Description
This 900 ㎡ high-pressure rib inflatable tent is engineered for mission-critical durability and operational flexibility. Built with a reinforced airbeam (rib) structure and covered by weather-resistant fabric, it offers a clear-span interior ideal for aircraft, armored vehicles, logistics warehousing, or field deployment shelter. With rapid deployment capability and optional upgrades (insulation, HVAC, camouflage, electromagnetic shielding), it meets high-end military, aviation, and industrial storage demands.
Technical Specifications
- General parameters

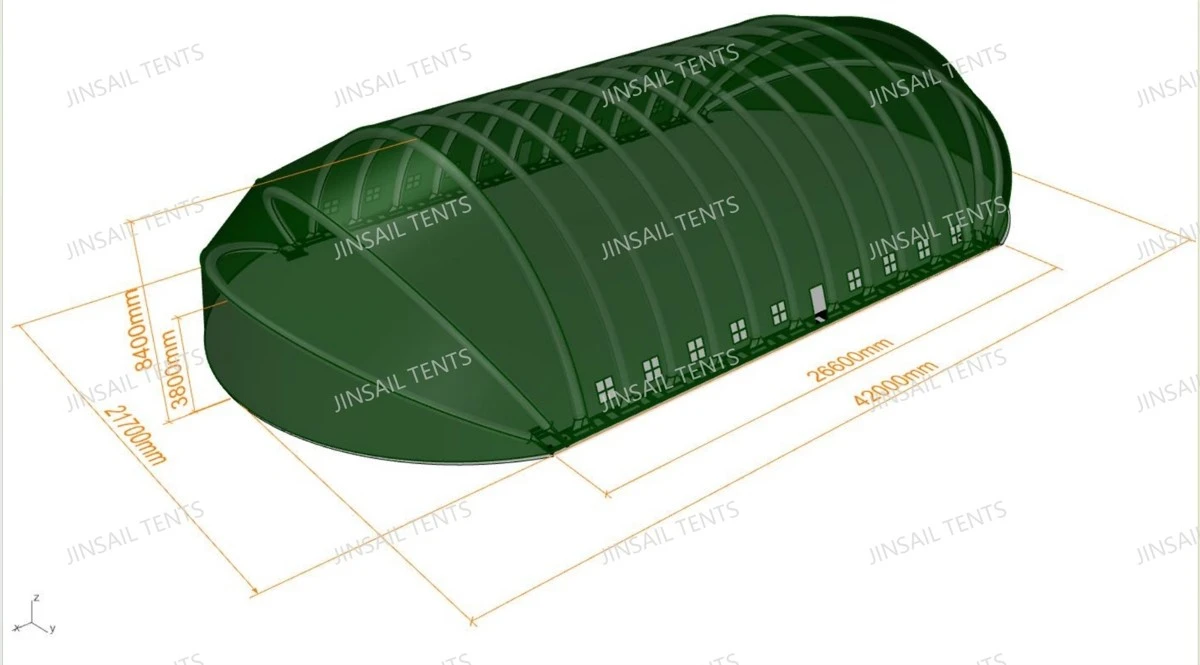

| Size: | Length 21.7 m , Width 42 m wide, Height 8.4 m |
|
||
| Snow Load Capacity: |
0.4 kN/m²; Calculated Load: 2839 kg, Verified Load: 3786.8 kg |
|||
| UV Resistance: |
Withstands 50°C temperature and 1120 W/m² radiation intensity for 4 hours with no visible degradation. |
|||
| Rainfall Resistance: | Tested under 2 mm/min precipitation rate for 3 hours-no leakage or seepage. | |||
| Wind resistance: | Rated to withstand 0.29 kN/m² wind pressure (equivalent to Beaufort Scale Level 9). | |||
- Fabric Specification
| Composition: | 100% Polyester Fabric |
|
||
| Specific weight: | 300g/m2 | |||
| Tensile Strength: | Warp (N) | 2300 | ||
| Weft (N) | 2540 | |||
| Tear Strength: | Warp (N) | 250 | ||
| Weft (N) | 168 | |||
| Flame retardancy: | Comply with NFPA 701 standard | |||
| Color Fastness: | Grade 5 | |||
| Hydrostatic Pressure: | 50.8 kPa | |||
| PH Level: | 5.1 | |||
- Airbeam Material
| Chemical Resistance: | 10% Hydrochloric acid, 23 ℃, 24h | No deformation, no discoloration |
|
|
| 1% Sodium Hydroxide, 23 ℃, 24h | No deformation, no discoloration | |||
| Tensile Strength: | Warp (N) | 17214 | ||
| Weft (N) | 14750 | |||
| Tear Strength: | Warp (N) | 891 | ||
| Weft (N) | 738 | |||
| Stripping Strength: | Warp (N) | Unable to fully split | ||
| Weft (N) | Unable to fully split | |||
| Flame retardancy: | Comly with NFPA 701 standard | |||
| Puncture Resistance: | 1500N (no leaks) | |||
| Low-Temperature test: | Test at -40℃ for 6h, No abnormalities | |||
| High-Temperature test: | Test at 70℃ for 6h, No abnormalities | |||
Key Features
1. Large Clear-Span Interior – Provides 900 ㎡ of unobstructed space, ideal for storing aircraft, vehicles, and oversized equipment.
2. High-Pressure Airbeam Structure – Ensures superior stability, rapid deployment, and durability under snow, wind, and load conditions.
3. All-Weather Protection – Fabric and airbeam materials tested for UV, rain, snow, salt-spray, high/low temperatures, and puncture resistance.
4. Rapid Deployment – Can be quickly deployed and packed down, enabling flexible field operations.
5. Long-Term Reliability – Single inflation can maintain pressure for ≥90 days; expected service life ≥5 years.
6. Customizable Modular Upgrades – Supports insulation liners, HVAC, camouflage nets, electromagnetic shielding, and pre-planned interface connections.
7. Easy Maintenance – Basic maintenance ≤0.5 h with professional tools provided.
8. Versatile Military & Industrial Use – Combines storage, shelter, and operational functionality in one mobile unit.
Applications
1. Aircraft Hangar – Protection for helicopters, fixed-wing aircraft, and UAVs in field or remote operations.
2. Armored Vehicle & Equipment Storage – Safe shelter for tanks, armored personnel carriers, or large machinery.
3. Military Logistics Warehouse – Temporary or semi-permanent storage for supplies, fuel, or equipment.
4. Field Operations & Command Centers – Deployable base for troops, field hospitals, or mission control.
5. Emergency Response & Disaster Relief – Rapidly deployable shelter for humanitarian aid, medical facilities, or temporary housing.
6. Industrial & Aviation Storage – Suitable for large-scale machinery, vehicles, or aviation components in civil applications.
Advantages
1. Rapid Deployment for Mission-Critical Operations
Ideal for military, aviation, and emergency forces requiring fast setup anywhere.
2. Lower Cost Than Steel Hangars
Minimal foundation, zero heavy steel structure, reduced shipping and installation cost.
3. Highly Mobile & Reusable
Designed for repeated deployment and long-term durability.
4. Customizable for Any Mission
Door size, insulation, HVAC, lighting, security doors, and logos can be tailored to requirements.
Packages and Shipment
1. Secure Packaging: Products are packed in standard export cartons or pallets to prevent damage.
2. Flexible Shipping: Choose sea, air, or land transport to meet your schedule.
3. Timely Delivery: Fast and reliable logistics to your location.
